Black-Box Hub Architecture for Simple & Efficient Production Line Integration

Acting as an intermediate hub between QX tools and customer production systems, it handles interactive transmission of various information including fastening data, barcodes and I/O signals, enabling tool-to-production system integration without complex development. Developed on a modern industrial software platform, it delivers stable and reliable operation with easy maintenance and upgrade, greatly reducing system integration and operation & maintenance costs.

Native Browser Access with Full-Chinese Interface for Easy Operation

All functions can be accessed and operated directly via a browser with no dedicated client software required, avoiding operational issues caused by software installation and version compatibility. It adopts a clean, user-friendly full-Chinese interface with clear production status display. The adaptive-resolution interface works smoothly on devices including computers, tablets and mobile phones, enabling frontline personnel to get started quickly.

 Dual Communication Versions with Rich Peripheral Expansion

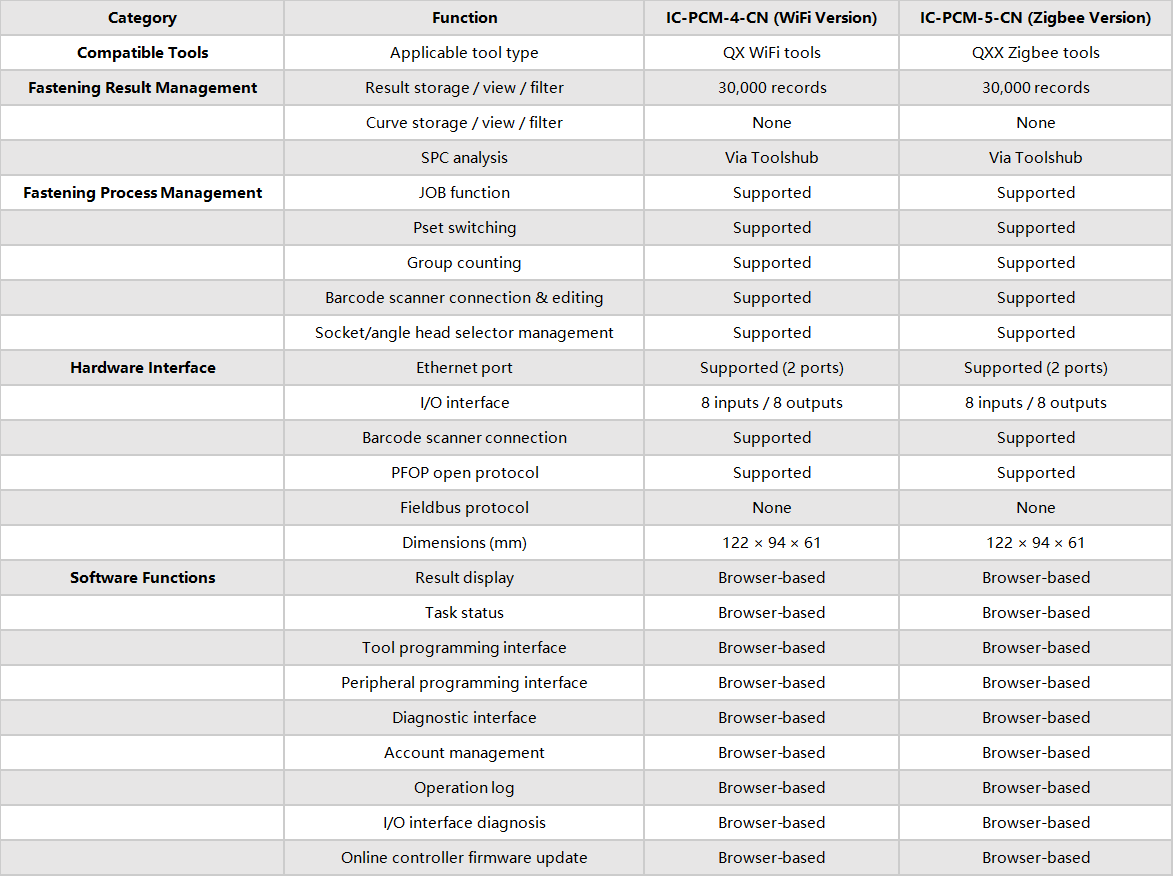

Two communication versions, WiFi and Zigbee, are available for flexible selection according to on-site environment and tool types. Hardware includes 2 Ethernet ports, 3 USB ports and 8 inputs / 8 outputs I/O interfaces. It supports the PFOP open protocol and flexibly connects to peripherals such as barcode scanners and socket/angle head selectors, adapting to configuration requirements of different production lines with strong scalability.

 Full-Dimensional Fastening Control for Precision Assembly Needs

Built-in storage holds up to 30,000 fastening records, supporting result viewing, filtering and traceability. It provides full-process functions including JOB task management, Pset program switching, group counting, barcode connection & editing, and socket selector management. It supports SPC statistical analysis via the Toolshub platform, meeting torque quality control and process optimization needs in precision assembly scenarios.

Compact Industrial Design for Flexible & Convenient Deployment & Maintenance

The compact, small-sized body supports multiple installation methods such as DIN rail mounting and wall mounting, enabling flexible production line deployment with small space occupation. It supports online controller program update, allowing firmware upgrade and function iteration without disassembly, greatly reducing production line maintenance downtime and meeting the needs of rapid deployment and upgrade in industrial sites.
