Full Compatibility with Power & Hand Tools, One System for All

A single system supports calibration and testing of both power tools and various precision hand tools, eliminating the need for separate equipment. It works with multiple sensor types including TR, TRDA, TSD and TS, covering full-range detection from micro to high torque, greatly reducing enterprise investment in calibration equipment.

 Comprehensive Statistical Analysis for Quality Control Compliance

Built with professional quality statistics functions, it automatically calculates count, range, average, min/max, standard deviation, and process capability indexes such as Cm, Cmk, Cp and Cpk. It supports torque curve tracing and histogram analysis, and directly outputs calibration data compliant with quality management systems, supporting production line quality traceability and process optimization.

 Rechargeable & Portable Design for Flexible Deployment

Powered by a rechargeable lithium-ion battery, it operates without power cord constraints and can be used across production lines, workstations and laboratories. Its compact and lightweight body saves workbench space, suitable for both fixed-station calibration and on-site sampling & mobile verification.

 Color Display with Intuitive Interaction for Efficient Operation

Equipped with a large color screen, it displays test results, menus and curves clearly and readably. Paired with a soft-touch keypad and intuitive menu navigation, test setup is fast and simple. Audible and visual indicators signal high/low/pass cycle status via light and sound, allowing operators to judge results without staring at the screen and improving work efficiency.

 Smart Sensor Auto-Recognition & Multi-Dimensional Data Acquisition

It supports automatic recognition of smart sensors for plug-and-play use without manual parameter configuration. It monitors bidirectional torque, angle, time, speed and pulse count, and supports multiple reading modes including peak, click, pulse and track. It stores up to 999 timestamped readings, meeting data retention needs for batch testing.

 Flexible Data Export for Traceability & Compliance

It supports USB export of CSV data and trace curves, and can connect to printers for direct output of calibration reports, labels and barcodes. It supports 11 measurement units to fit metrology habits across regions and industries. The multi-language interface supports English, French, German, Italian and Spanish, meeting the needs of global enterprises.

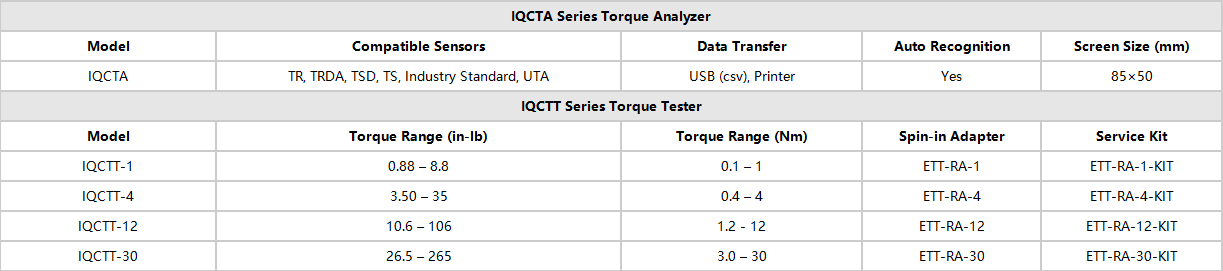

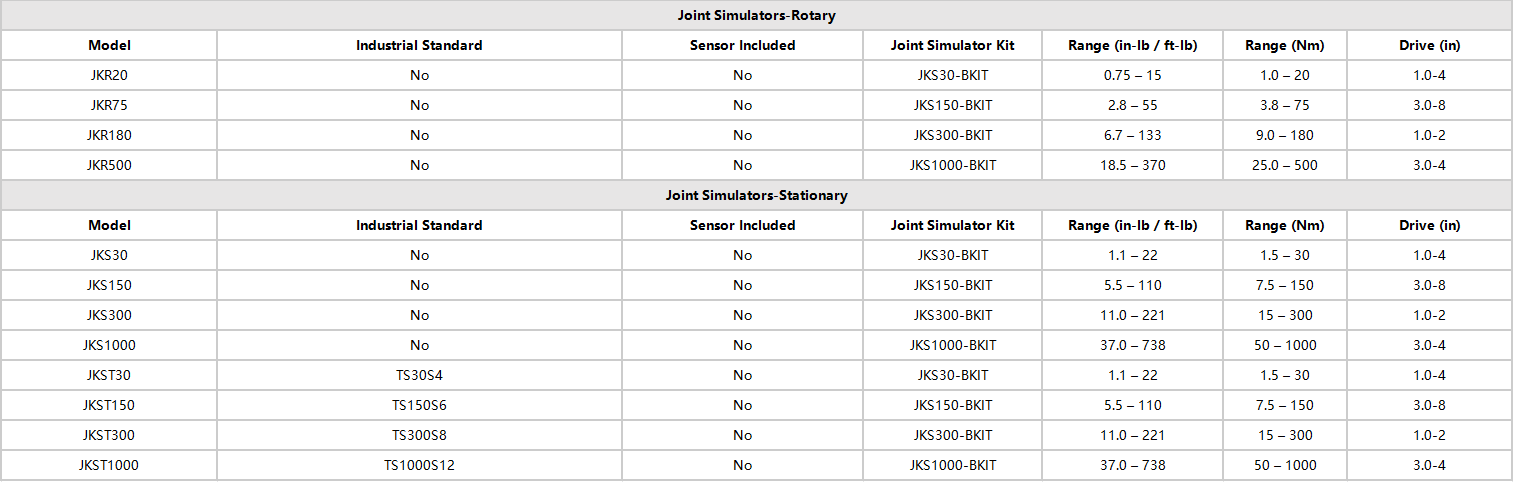

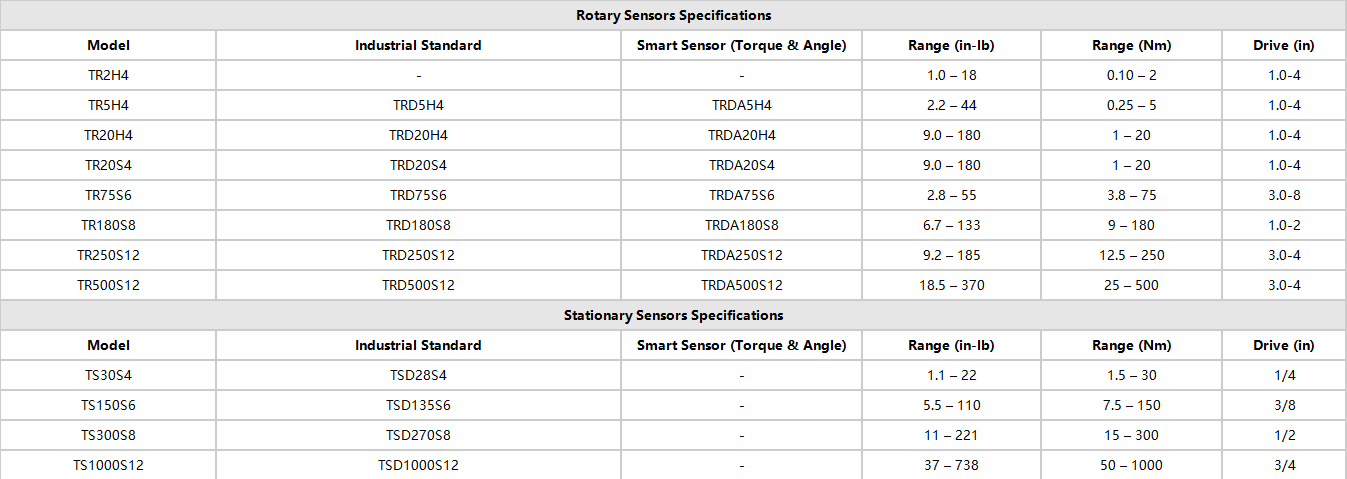

 Full Range of Sensors & Simulators for Complete Coverage

It is matched with two sensor series (rotary and stationary) and corresponding joint simulators, covering a wide torque range from 0.1 Nm to 1000 Nm. Joint simulators replicate real fastening conditions, making calibration results closer to actual operation and improving the accuracy and reliability of torque tool calibration.
