Ingersoll Grand QXM Series Pistol Grip High-Torque Cordless Tightening System | Closed-Loop Brushless Wireless Digital Torque Wrench
The QXM pistol grip high-torque tightening system is an innovative cordless tightening tool built for heavy-duty assembly. Equipped with a market-leading torque multiplier at the front end and Ingersoll Rand’s patented closed-loop sensor control, it covers a torque range of 200–2000 Nm.
Featuring a QX-series brushless motor and a multi-function display, it supports customizable programs for torque, angle and speed. It enables data collection and process control via USB or wireless modules. With an adjustable reaction arm and ergonomic body, it guarantees assembly quality at critical workstations while significantly reducing assembly time and cost to maximize productivity
- Product Details

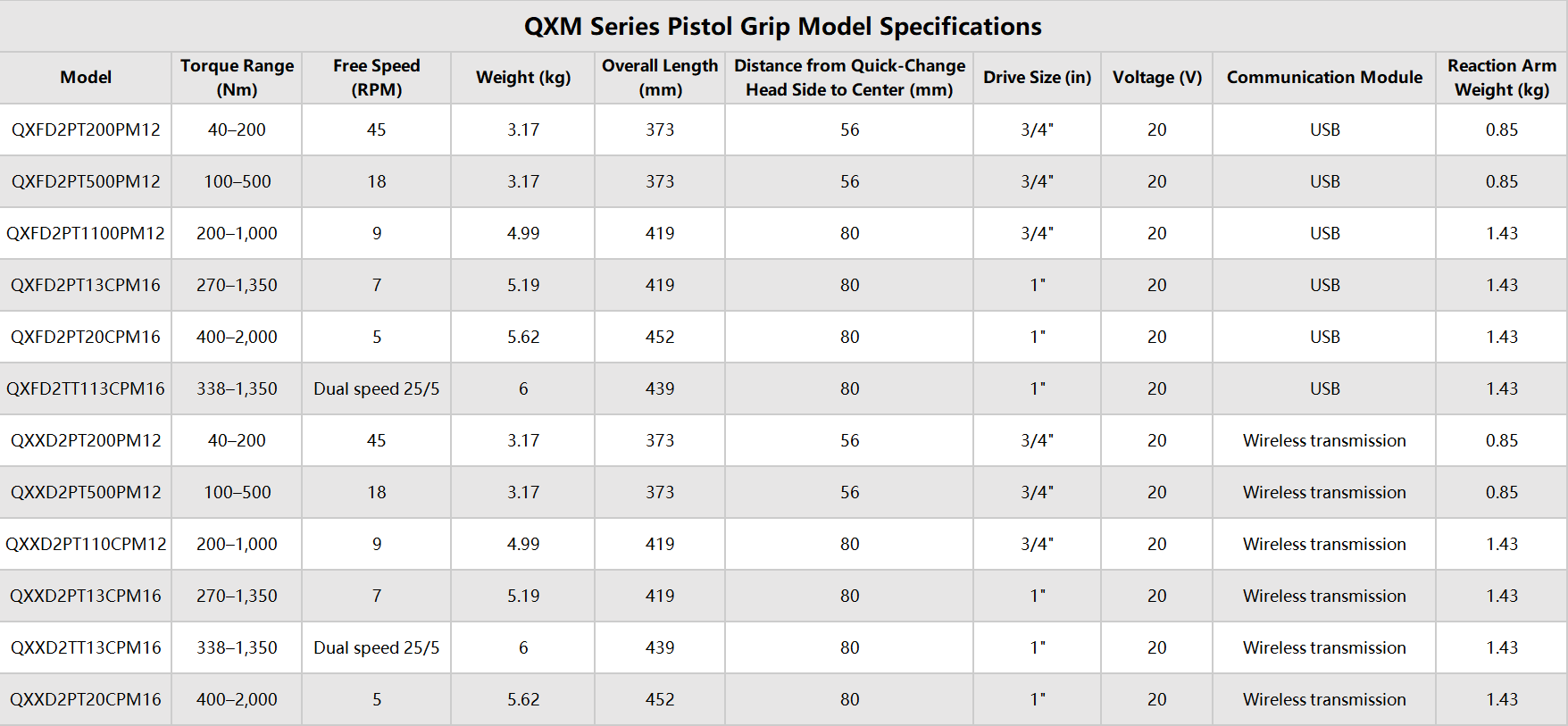

- Technical Specification
- After-sale service
High-Torque Multiplier Technology for Heavy-Duty Applications
Equipped with a market-leading torque multiplier at the front end, it delivers a maximum output torque of up to 2000 Nm, easily handling large bolt fastening in heavy equipment, steel structures, wind power and petrochemical scenarios. Standard and customized reaction arms flexibly adapt to different applications with high operation stability.
Ingersoll Rand’s patented closed-loop sensor delivers precise tightening torque output and full traceability of all tightening data. The multi-function display enables quick parameter setting and feedback reading, and multiple editable programs greatly reduce the number of on-site tools, adapting to multi-variety assembly demands.
Powered by a reliable QX-series brushless motor, it eliminates carbon brush wear for a longer service life. The non-contact trigger and forward/reverse switch further extend the life of wearing parts, suitable for high-intensity continuous operation in industrial sites, with excellent equipment reliability and low maintenance cost.
Ergonomically designed with balanced center of gravity, it offers lightweight and comfortable grip. The 360° adjustable side handle adapts to different workstations and operating postures. A 6mm threaded hole on the handle supports installation of hooks and other suspension devices for safer tool use and reduced fatigue during long-time operation.
Standard USB and wireless communication options are available, supporting data management, process control and program modification, and compatible with Ethernet, fieldbus and I/O interfaces. The cordless wireless design eliminates complicated configurations such as air hoses, hydraulic pipes, air compressors and generators, allowing operators to move freely around the workstation.
This product supports bulk orders and OEM/ODM customized services with factory direct prices.We can provide customized configurations such as torque range, drive head type, battery capacity, angle function and appearance according to customer requirements.
Adopts high-quality industrial-grade components and precision manufacturing processes, with stable quality and guaranteed delivery.We also provide complete operation training, calibration services and long-term technical support services.
