MUTHEL CM-DBTS-SERVER Industrial Torque Data Management Server | All-in-One Touchscreen Tightening Control System
The CM-DBTS-SERVER is an all-in-one industrial torque data management server with an integrated 8-inch touchscreen display. It has a built-in torque gateway hardware card, integrates WiFi and Bluetooth, and is pre-installed with the TorquExplore DBTS upper-computer torque management system based on MySQL database.
With rich industrial interfaces including WAN, LAN, COM, USB and expandable I/O ports, it serves as the central data processing device for multi-device independent networking. It supports bidirectional data transmission with various torque tools and peripherals, and can be connected to upper-level MES systems and WIVOR Cloud. It is an ideal core management terminal for smart factory tightening quality traceability, multi-workstation centralized control and digital assembly management
- Product Details
- Technical Specification
- After-sale service
- All-in-One Touchscreen Design for Rapid Deployment
Adopting an all-in-one design with an 8-inch touchscreen display, it integrates torque gateway hardware, management software and database in a single device. It supports touch operation and visual interface display, eliminating the need for additional computers and gateways, enabling rapid on-site deployment and plug-and-play.
- Central Data Processing Hub for Full-Process Digital Control
Built with a MySQL database and TorquExplore DBTS upper-computer management system, it acts as the central data processing hub for multi-machine networking. It realizes tightening data collection, parameter distribution, result statistics, curve analysis and quality traceability, and supports centralized management of multiple workstations to build a complete digital tightening management system.
- Full Device Compatibility with Two-Way Data Interaction
It is fully compatible with electronic precision wrenches, electric wrenches, rechargeable wrenches, smart torque sockets, digital manual wrenches and related peripherals, supporting bidirectional transmission of data upload and parameter distribution. It also supports barcode scanning, alarm light linkage and other extended functions to meet diversified assembly scenario requirements.
- Rich Industrial-Grade Interfaces for Flexible Networking

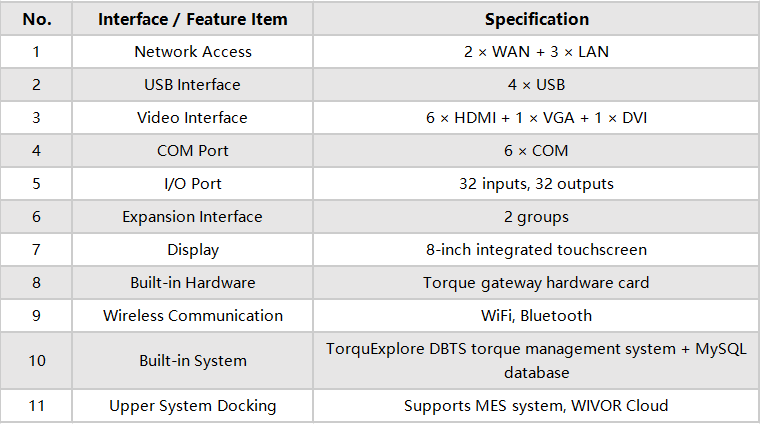

Equipped with abundant industrial interfaces including 2 WAN + 3 LAN ports, 4 USB ports, 6 COM ports, 6 HDMI + 1 VGA + 1 DVI video interfaces, 32-input/32-output I/O ports and 2 sets of expansion interfaces. It supports multiple networking modes, seamlessly connects with on-site automation equipment, and flexibly expands functions according to production demands.
- Multi-Level System Docking for Smart Factory Architecture
It supports Ethernet connection to upper-level MES systems and WIVOR Cloud, realizing data interconnection and collaborative management. It can operate independently as a local management center, or be integrated into the enterprise intelligent manufacturing architecture to help customers quickly complete the digital upgrade of tightening processes.
This product supports bulk orders and OEM/ODM customized services with factory direct prices.We can provide customized configurations such as torque range, drive head type, battery capacity, angle function and appearance according to customer requirements.Adopts high-quality industrial-grade components and precision manufacturing processes, with stable quality and guaranteed delivery.We also provide complete operation training, calibration services and long-term technical support services.
