Dual-channel Precise Ratio & Uniform Static Mixing：

Adopts independent dual feeding channel design, ensuring accurate and stable mixing ratio of two-component fluids.Built-in high-efficiency static mixing core, fully mixes two fluids instantly, ensuring consistent curing effect and dispensing quality.

0.1g Ultra-small Volume Precise Glue Control：

Minimum dispensing volume reaches 0.1g, maximum flow rate up to 0.6L/min, enabling stepless adjustment of glue output.Stable and repeatable dispensing per cycle, perfectly meeting the requirements of micro-precision two-component dispensing processes.

Wide Low Viscosity Fluid Adaptability：

Suitable for fluid viscosity from 1CPS to 1000CPS, covering various low viscosity two-component industrial fluids.Compatible with AB epoxy resin, low viscosity silicone, polyurethane, anaerobic glue and other two-component materials.

Multi-material Corrosion-resistant Wetted Parts：

Wetted parts adopt composite material design of SUS304 stainless steel + FKM fluororubber + UHMW ultra-high molecular weight polyethylene.Excellent chemical corrosion resistance and wear resistance, suitable for long-term contact with various chemical fluids, extending service life.

High-speed Stable Operation：

Maximum actuation speed reaches 150 cycles/min, with fast pneumatic response and no lag phenomenon.Actuation pressure range 392-686KPa, maximum material delivery pressure 490kPa, ensuring stable and reliable operation in continuous production.

Compact Modular Design & Easy Installation：

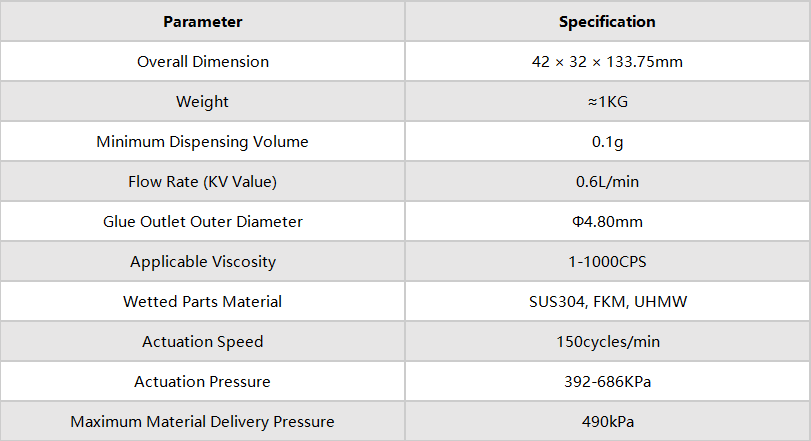

Ultra-compact size with dimension of 42×32×133.75mm, weight only ≈1KG, saving installation space and reducing equipment load.Standard universal interface design, modular structure, easy to install, disassemble and maintain.
