MUTHEL MM-LA Series Modular Digital Manual Torque Wrench | Torque & Angle Dual-Measurement
The MM-LA series is a modular manual torque tool with a customizable modular design, which can be freely configured with functional modules to perfectly match workstation requirements. Equipped with a high-precision torque sensor and built-in angle gyroscope, it supports both torque and angle measurement with 1° angle resolution, and realizes full traceability of the entire tightening process.
It features a 2.0-inch OLED display, a replaceable 2000mAh lithium battery, and local storage of up to 100,000 operation records. Compatible with professional PC software and Android APP, it supports QR code scanning, wireless data transmission and MES system docking. It is widely used in production line assembly quality control, residual torque detection, fastener connection analysis, on-site torque verification and precision assembly scenarios
- Product Details

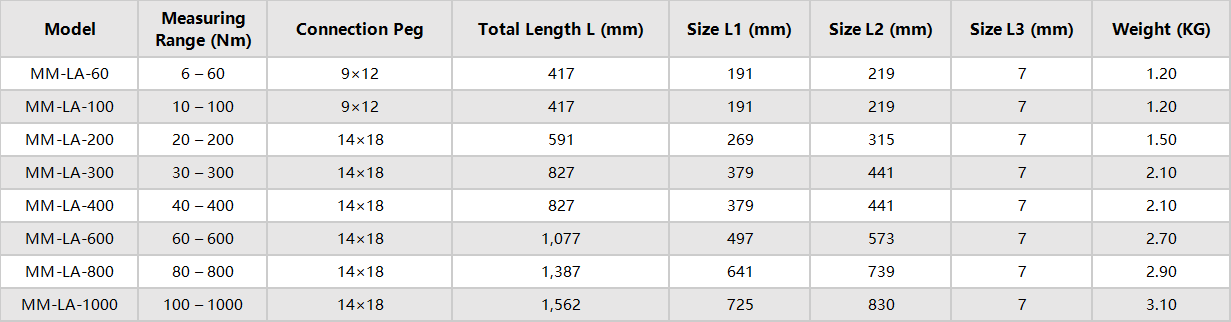

- Technical Specification
- After-sale service
Modular Customizable Design for Precise Workstation Adaptation
Adopting a modular design concept, users can freely customize various functional modules according to on-site workstation requirements, perfectly matching tightening and testing processes. The flexible configuration scheme achieves excellent torque precision, and supports diversified drive heads to adapt to different bolt specifications and working conditions.
Torque & Angle Dual Measurement for Full-Dimensional Quality Control
Built with a length-independent torque sensor and an angle measurement gyroscope, it achieves 1° angle measurement resolution. It supports real-time value, peak value, tracking torque/angle detection, and torque + angle monitoring mode. It also supports residual torque detection, reverse retightening and fastener connection analysis, helping set accurate tightening process parameters.
Full-Link Data Traceability & Smart IoT Compatibility
It stores up to 100,000 operation records locally, and supports offline programming, statistical analysis, torque/angle curve viewing, zooming and export via Wivor Explore PC software. It is compatible with Android ToolExplore APP, and optional WIFI, PDA, barcode reader and customized dedicated bus modules to realize seamless docking with production management systems.
HD OLED Interaction for Efficient & Convenient Operation
Equipped with a 2.0-inch OLED display with icon display and LED indicators, it is matched with a finger keyboard for quick parameter setting. It supports multi-unit switching, multilingual menus, batch counting, tag discrimination and QR code scanning, with buzzer notification to significantly improve on-site operation efficiency.
- Replaceable Lithium Battery with Long Endurance & Industrial Durable Design
Built-in 2000mAh rechargeable lithium battery with replaceable design guarantees long-time continuous operation. The handle is covered with rubber protection for anti-slip and anti-drop performance, adapting to harsh industrial environments and meeting long-term on-site testing and assembly operation demands.
This product supports bulk orders and OEM/ODM customized services with factory direct prices.We can provide customized configurations such as torque range, drive head type, battery capacity, angle function and appearance according to customer requirements.Adopts high-quality industrial-grade components and precision manufacturing processes, with stable quality and guaranteed delivery.We also provide complete operation training, calibration services and long-term technical support services.
