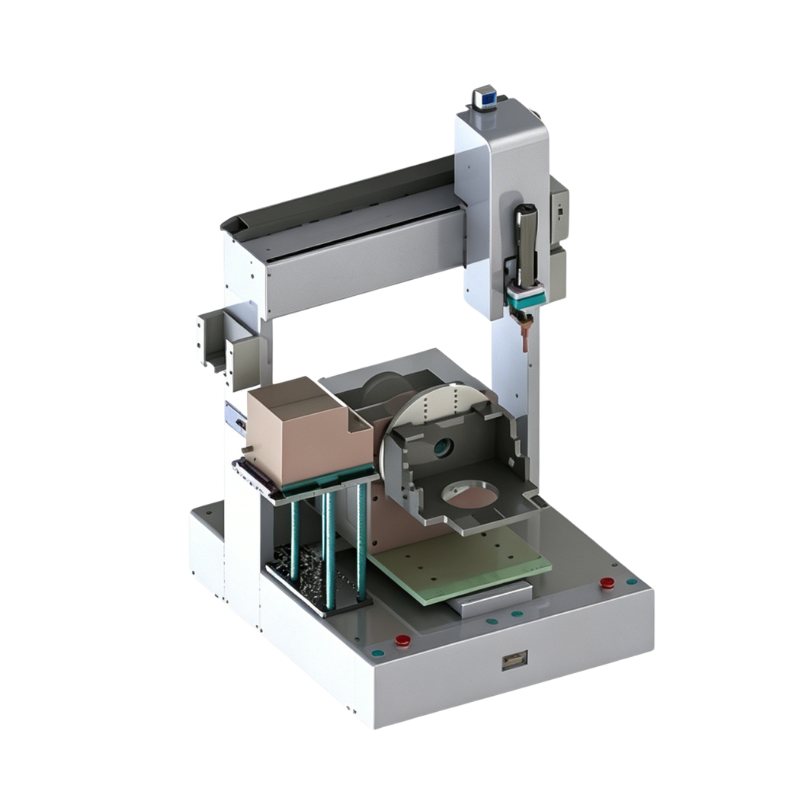

Gantry-style design with large working range: Features a gantry structure that accommodates extra-large products, offering a working envelope of 300 x 300 x 140 mm. It perfectly meets multi-point fastening requirements for various medium-sized products, solving assembly challenges for multiple specifications with a single machine.

Low-cost, unmanned operation: Supports an assembly-line workflow with automated loading and unloading, eliminating the need for dedicated operators; a single person can oversee multiple units, significantly reducing labor costs and enabling continuous 24-hour production.

Industry-leading speed and stability: Delivers top-tier fastening speeds, averaging 1.5–2.0 seconds per screw. Utilizes a stepper/closed-loop stepper motor drive combined with a linear rail and synchronous belt transmission system, achieving positioning accuracy of ±0.02 mm for smooth, precise operation.

Intelligent detection and protection: Built-in automatic detection and alarm functions for missed screws, stripped threads, and floating screws effectively prevent defective products from passing through. Automatically handles residual screws in the nozzle to prevent product damage, ensuring production quality and equipment safety.

User-friendly program management: Equipped with a high-end PLC and touchscreen control system for simple, intuitive operation. Supports program copying via USB flash drive and one-key system parameter reset. Stores fastening programs for up to 100 different products, allowing for quick and easy changeovers—ideal for high-mix, low-volume production.

360-degree flexible fastening capability: Supports 360-degree rotation, enabling screw fastening at any angle. Easily handles complex fastening locations such as side surfaces and inclined planes, expanding the equipment's range of applications.
