Intelforce 1.3-1.5s/screw Dual Screwdriver Locking Machine-Double Efficiency Large-scale Production Line Equipment

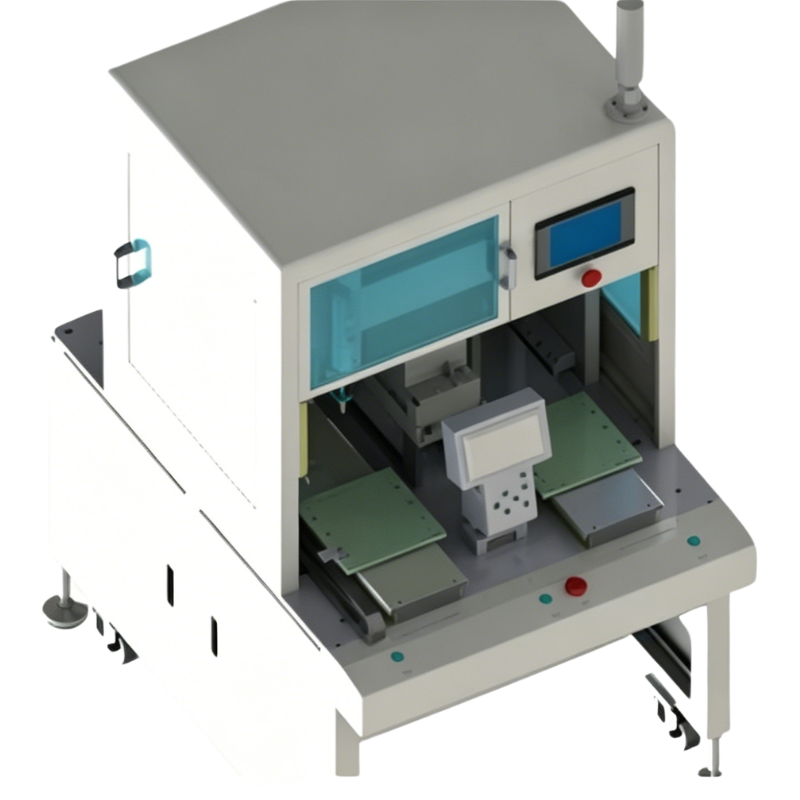

Floor-standing Double-head Dual-platform Automatic Screw Locking Machine adopts back-to-back dual electric screwdrivers and dual tracks design, achieving double efficiency for large capacity production with single screwdriver speed of 1.3-1.5s/screw and ±0.02mm positioning accuracy. It is widely used for screw locking of laptops, keyboards, power modules and LED modules, realizing low-cost unmanned continuous production

  • Dual Electric Screwdrivers + Dual Tracks Back-to-back Structure:

    Adopts dual electric screwdrivers and dual tracks back-to-back design, compact floor-standing structure with stable operation.Can simultaneously support locking operations of two different screw specifications and two different torques, meeting complex product assembly needs.


  • Double Efficiency for Large Capacity Production:

    When using the same screw and same torque, the efficiency is equivalent to 2 single screwdriver single-track screw locking machines.Single screwdriver speed reaches 1.3-1.5 seconds per screw, perfectly suitable for high-volume mass production occasions.


  • Low-cost Unmanned Continuous Production:

    Supports assembly line operation mode of "previous process loading, next process unloading", no dedicated operator required.One person can supervise multiple machines, significantly reducing labor costs and enabling 24-hour uninterrupted production.


  • Intelligent Quality Control System:

    Built-in automatic detection and alarm functions for missing locking, stripped threads and floating height, effectively preventing defective products from leaving the factory.Supports automatic removal of residual screws from the suction nozzle to avoid damaging products, ensuring production quality and equipment safety.


  • Convenient Program Management and Maintenance:

    Equipped with high-end PLC + touch screen control system, easy and intuitive to operate.Supports USB flash drive program copying and one-click system parameter reset function.Can store locking programs for 100 different products, enabling quick changeover and perfectly adapting to multi-variety small-batch production.


This product supports bulk orders and OEM/ODM customized services with factory direct prices.Adopts industrial-grade durable materials and precision manufacturing processes, with stable quality and guaranteed delivery.We can provide customized working stroke, locking system and appearance marking services according to customer needs.We also provide complete installation, commissioning and technical training support.
