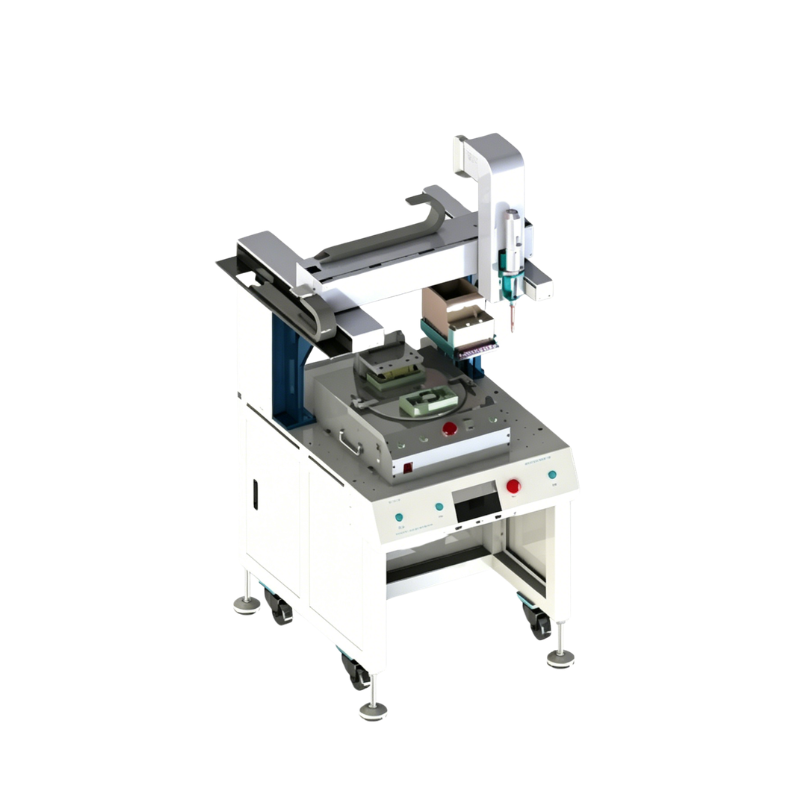

Gantry Structure for Medium & Oversized Products：

Adopts single electric screwdriver and single-track gantry design, with stable structure and strong load-bearing capacity.Specially designed for medium-sized and oversized products, solving the problem that ordinary desktop models cannot adapt to large workpieces.

360° Arbitrary Angle Locking Capability：

Supports 360-degree arbitrary rotation, can realize screw locking at any angle of the product.Effectively solves the multi-surface and multi-angle locking problem of complex structural products, greatly expanding the application range of the equipment.

Industry-leading Speed and Stability：

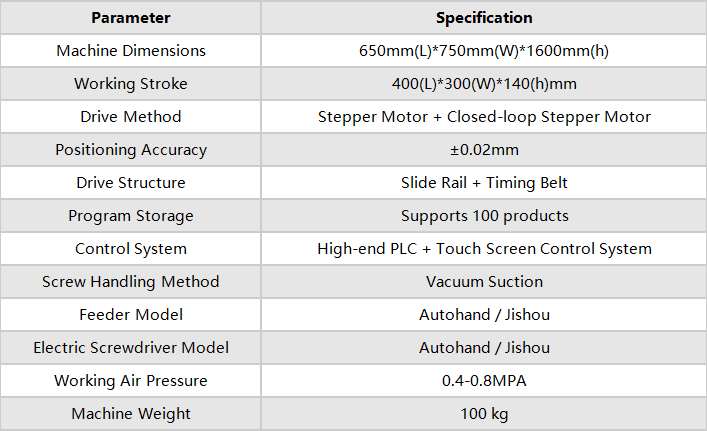

Locking speed and stability are at the leading level in the industry, with an average of 1.5-2.0 seconds per screw.Adopts stepper motor + closed-loop stepper motor drive and slide rail + timing belt transmission structure, positioning accuracy up to ±0.02mm.

Low-cost Unmanned Continuous Production：

Supports assembly line operation mode of "previous process loading, next process unloading", no dedicated operator required.One person can supervise multiple machines, significantly reducing labor costs and enabling 24-hour uninterrupted production.

Intelligent Quality Control System：

Built-in automatic detection and alarm functions for missing locking, stripped threads and floating height, effectively preventing defective products from leaving the factory.Supports automatic removal of residual screws from the suction nozzle to avoid damaging products, ensuring production quality and equipment safety.

Convenient Program Management and Maintenance：

Equipped with high-end PLC + touch screen control system, easy and intuitive to operate.Supports USB flash drive program copying and one-click system parameter reset function.Can store locking programs for 100 different products, enabling quick changeover and perfectly adapting to multi-variety small-batch production.
