Carbon Fiber Lightweight Design for Comfortable & Efficient Operation

The main arm body is made of carbon fiber, with significantly reduced weight compared with traditional metal folding arms. Operators can move and align the tool more easily. It greatly reduces arm strain during long continuous shifts, effectively lowering fatigue and improving efficiency and comfort at assembly workstations.

 Standard Spring Balancer for Ready-to-Use Deployment

The product comes with a matched spring balancer as standard, which accurately counterbalances the weight of the tool and arm body, enabling floating positioning of the tool within the working range. No additional balancing device is required, with a simple ordering and installation process for quick production line implementation.

 High-Precision Linear Bearings for Stability & Durability

All guide positions adopt high-quality linear bearings, featuring smooth movement and low backlash, ensuring tool alignment accuracy and reliable repeat positioning. With low wear under long-term high-frequency use and a long service life, it adapts to the high-intensity, high-cycle operation demands of industrial production lines.

 Dual Versions with Full Range Coverage for Flexible Selection

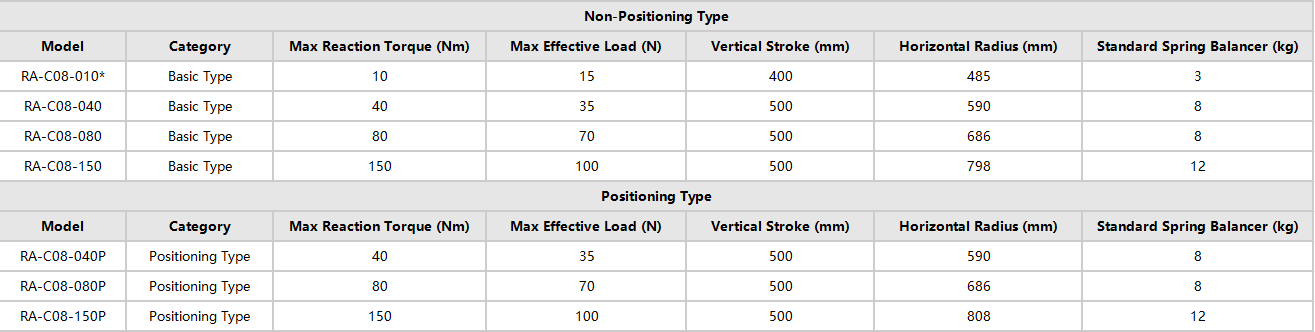

Two versions are available — Basic Type and Positioning Type — covering a reaction torque range from 10 Nm to 150 Nm, compatible with tightening tools of different specifications. The Positioning Type supports DC24V power supply and 0–10V absolute analog output, and can be connected to production line control systems for tightening position traceability and error-proofing control.

 Standardized Interface Design for Strong Compatibility

Equipped with a universal collet as standard, it supports vertical installation of pistol-grip tools and is compatible with mainstream brands of electric tightening wrenches. With standardized installation dimensions, it can directly replace traditional metal folding arms without major workstation modification, achieving low-cost production line upgrade.
