Ingersoll grand BLD/BMD/BIDS/BHD/BSD Series Industrial Spring Balancers | 0.4–165kg Tool Balancer for Workstation Ergonomic Support
Ingersoll Rand’s full range of spring balancers (spring tool hoists) are engineered for industrial workstation ergonomics. They effectively counterbalance tool weight and significantly reduce arm and shoulder strain for operators, making them ideal for high-torque heavy tool applications paired with torque arms. They are standard workstation accessories that boost assembly efficiency and reduce occupational fatigue.

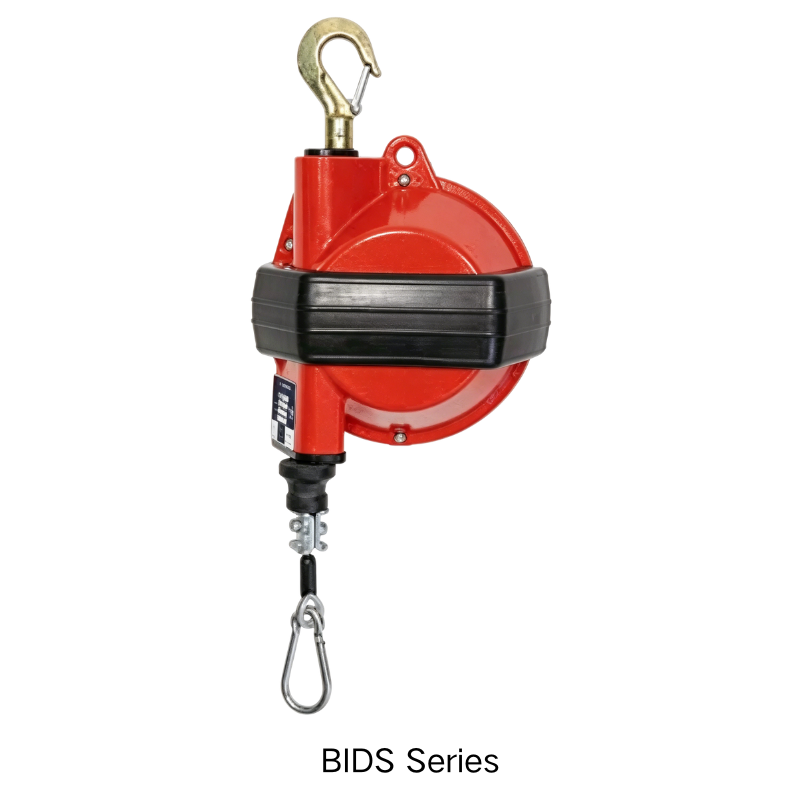

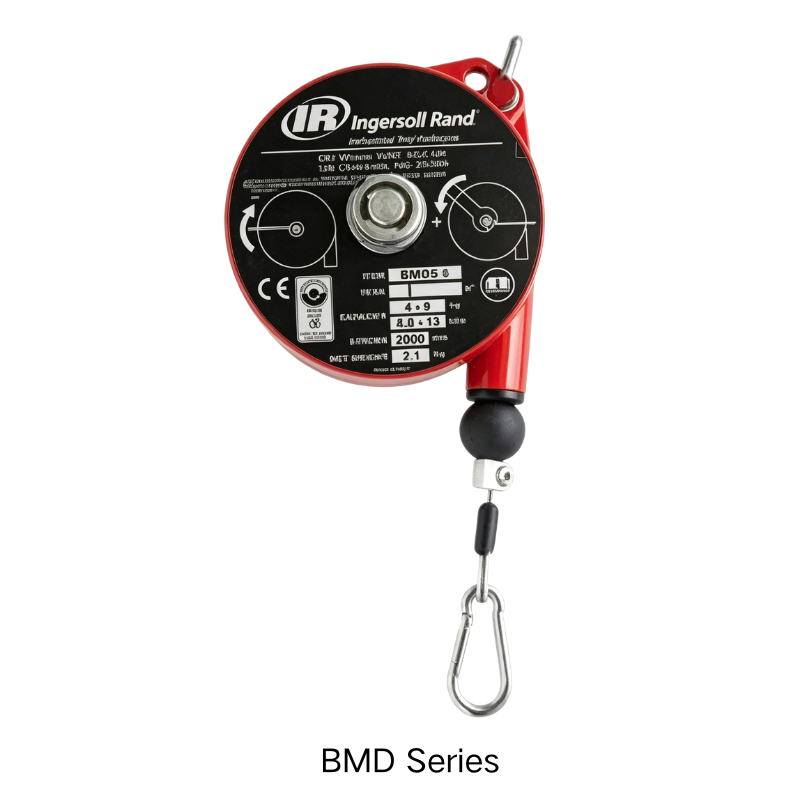

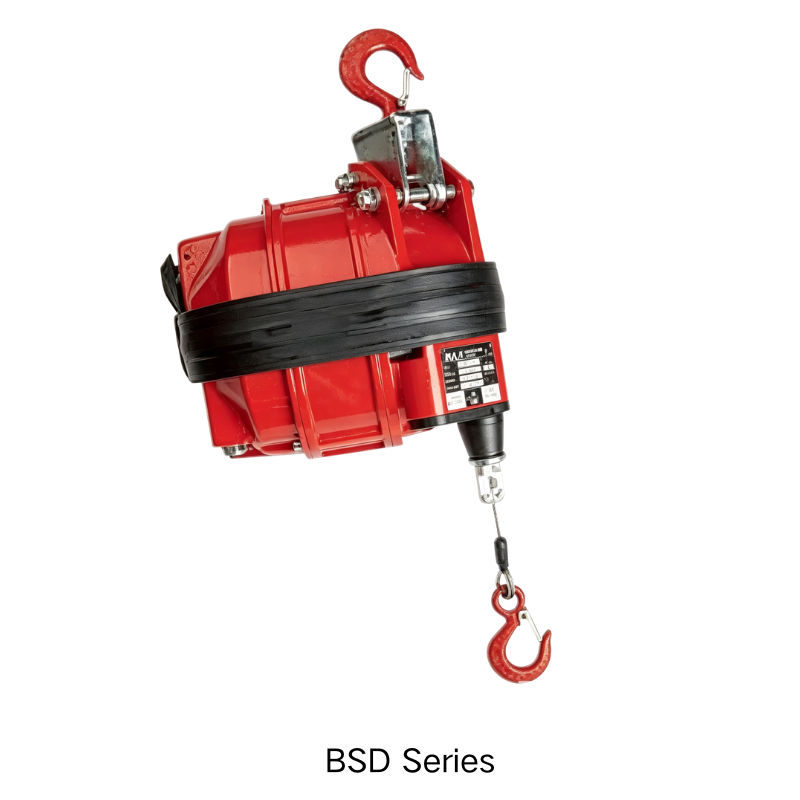

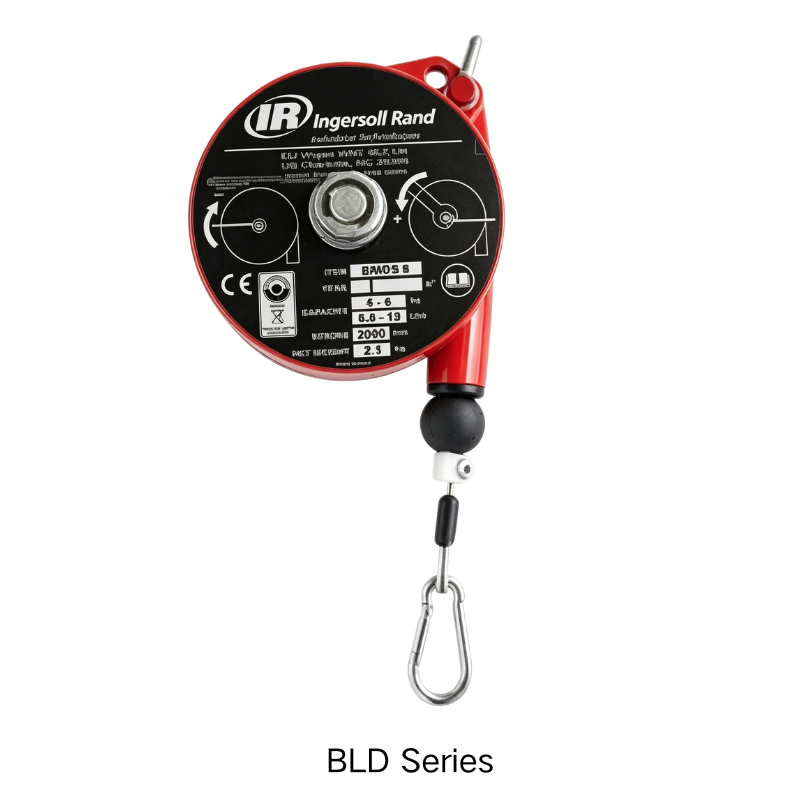

Covering an ultra-wide load capacity from 0.4 kg to 165 kg, the portfolio includes five series — BLD, BMD, BIDS, BHD and BSD — designed for hanging light handheld tools, medium power tools and heavy equipment respectively. All units feature multiple safety designs such as spring-break safety lock, low-friction mechanism, swivel hook and anti-drop hook. Selected models offer advanced features like tool-free cable replacement, manual self-lock and pre-lubrication. They are widely used in automotive assembly, construction machinery, electronics manufacturing, equipment maintenance and various industrial scenarios
- Product Details
- Technical Specification
- After-sale service
5 Series Full-Range Coverage for All Scenarios
The full portfolio covers load capacities from 0.4 kg to 165 kg, matching everything from lightweight electric screwdrivers and ratchet wrenches to heavy impact wrenches and grinding equipment. Corresponding models are available for both light individual tasks and heavy-duty production line stations. Users can select the precise model based on tool weight for optimal counterbalancing performance.
Multiple Safety Protection Designs for Reliable Operation
Core models are equipped with a spring-break safety lock mechanism that locks instantly if the spring fails, preventing tools from falling and causing injury. Combined with designs such as anti-drop hooks and swivel hooks, hanging safety is further enhanced. Some heavy-duty models feature manual self-lock to hold position during maintenance and part replacement, ensuring operation safety.
Low-Friction Precision Structure for Smooth Operation & Long Service Life
It adopts a low-friction transmission mechanism and fixed slider design, ensuring smooth cable retraction and extension with no jamming. The operation feels light and remains consistent even after long hours of high-frequency use. Some light-duty models come pre-lubricated to reduce daily maintenance frequency, delivering long and reliable service life in continuous production line environments.
User-Friendly Details for Efficient Operation & Maintenance
Adjustable load capacity allows users to fine-tune balancing force according to actual tool weight for better adaptability. Heavy-duty models adopt precision cable winding to prevent cable tangling and clogging. Some premium models support quick cable replacement without full disassembly, greatly reducing maintenance downtime and improving production line efficiency.
Industrial-Grade Durable Structure for Continuous Operation
The entire unit is built with a high-strength metal housing, industrial-grade springs and steel cables for a robust and durable structure that withstands high-frequency, long-hour continuous use in workshops. The swivel hook allows 360° flexible tool positioning to fit different working angles, making it a standard ergonomic auxiliary device for assembly lines and maintenance stations.
This product supports bulk orders and OEM/ODM customized services with factory direct prices.We can provide customized configurations such as torque range, drive head type, battery capacity, angle function and appearance according to customer requirements.Adopts high-quality industrial-grade components and precision manufacturing processes, with stable quality and guaranteed delivery.We also provide complete operation training, calibration services and long-term technical support services.
