Danikor Wall-mounted Torque Arm-100Nm Carbon Fiber Cylinder Balance No Desktop Occupation Equipmen
Wall-mounted Torque Arm can use on-site profiles and components as support columns without occupying desktop space, with maximum torque resistance 100Nm. Made of carbon fiber material, it features cylinder balance for flexible adjustment. Standard equipped with X&Y encoders and optional Z-axis positioning, provides RS485 positioning and non-positioning types, supports left/right folding and 3 size options. The front end is compatible with DK series clamps and supports customization, ideal for workstations with limited desktop space and air source
- Product Details
- Technical Specification
- After-sale service
Wall-mounted Design, Zero Desktop Occupation & Flexible Deployment：
Can directly use on-site aluminum profiles, steel frames and other existing components as support columns, no need to occupy valuable desktop space, perfectly solving the problem of tight assembly space.No need for additional heavy bases, low deployment cost, easy to install and disassemble, suitable for production line transformation and upgrade.
Carbon Fiber Material + Cylinder Balance, Lightweight & Labor-saving：
Adopts high-strength carbon fiber material, lightweight but strong, significantly reducing the weight of the arm body and operator fatigue.Equipped with precision cylinder balance system, flexible height adjustment, smooth movement with no jamming, realizing effortless one-hand operation.Multi-dimensional Positioning, Precise Error Prevention & Traceability：
Standard equipped with X&Y axis encoders, optional Z-axis positioning function, realizing three-dimensional precise positioning of the tightening tool.RS485 positioning type supports real-time position monitoring and data upload, effectively preventing wrong tightening, missing tightening and cross tightening.Multiple Specifications Optional, Strong Compatibility & Customization：

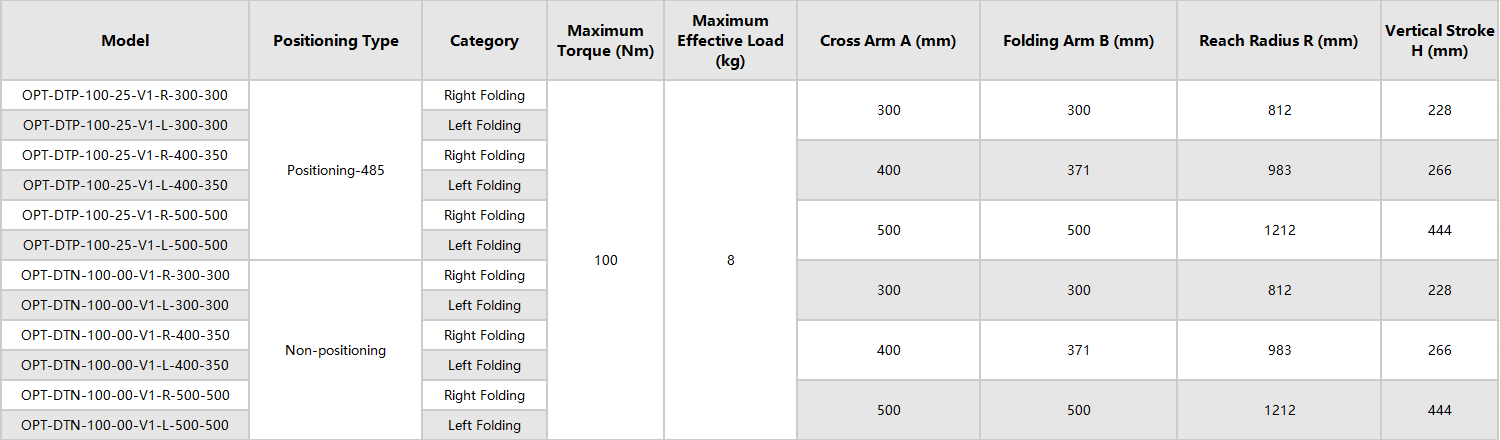

Provides two types: non-positioning for general assembly and RS485 positioning for precise process control.Supports left folding and right folding options, with 3 standard sizes (300mm/400mm/500mm cross arm) to adapt to different workstation layouts.The front end is fully compatible with DK series tool clamps, and supports customized design according to special tool requirements.
This product supports bulk orders and OEM/ODM customized services with factory direct prices.We can provide customized configurations such as communication protocols, interface types, screen size and software functions according to customer production line requirements.Adopts high-quality industrial-grade components and precision manufacturing processes, with stable quality and guaranteed delivery.We also provide complete on-site installation, commissioning, operation training and long-term technical support.
