Danikor Gantry Torque Arm -5.35.3m Full Coverage Overhead Installation New Energy Battery Assembly Equipment
Danikor Gantry Torque Arm is specially designed for complex assembly scenarios with limited ground space such as new energy battery packs and motor electronic controls. It provides up to 5.35.3m full rectangular coverage, features modular structure, intelligent error prevention, 300Nm vertical and 500Nm horizontal torque resistance, and multi-directional vertical tightening. Available in A and B series, it can be installed overhead to save ground space, ideal for new energy, automotive and heavy industry assembly lines
- Product Details

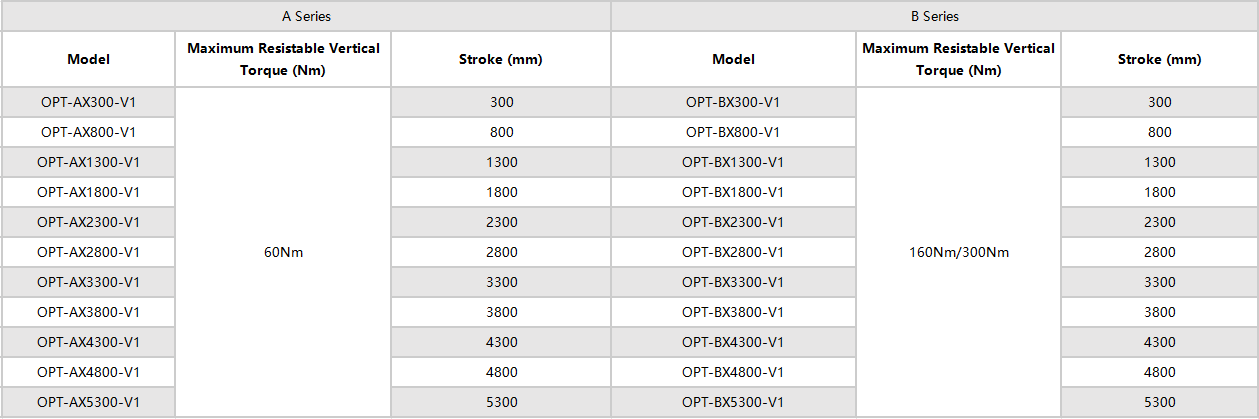

- Technical Specification
- After-sale service
Full Rectangular Stroke Coverage, Zero Ground Occupation：
Supports full-range arbitrary coverage within rectangular frame, with maximum effective rectangular stroke up to 5.35.3m, adapting to multi-station continuous assembly of large workpieces.行Can be fixed and installed in parallel or vertical direction on overhead structures, completely does not occupy valuable ground operation space, perfectly solving the problem of limited ground space.Flexible operation without dead angles, ensuring smooth access to every tightening position of large workpieces.
Modular Structure Design, Easy Installation & Maintenance：
Adopts modular structure design with high stability, convenient for on-site rapid installation and disassembly, greatly shortening deployment cycle.Each component is independently replaceable, daily maintenance is simple, significantly reducing equipment downtime.Can flexibly expand or adjust the stroke range according to production needs, adapting to production line transformation and upgrade.
Intelligent Error Prevention & Traceability：
Supports optional torque arm controller or assembly guidance software for intelligent process management.Precisely controls tightening positions and operation processes, effectively preventing wrong tightening, missing tightening and cross tightening.Realizes full data traceability of the tightening process, meeting the digital quality management requirements of modern manufacturing.
Super Strong Torque Resistance, Stable & Durable：
Absorbs reaction force through rigid structure, with excellent torque resistance effect.Vertical torque resistance up to 300Nm, horizontal torque resistance up to 500Nm, easily handling high-torque tightening operations.Made of high-strength industrial-grade materials, sturdy and durable, suitable for long-term operation in harsh industrial environments.
Multi-directional Vertical Tightening, Adapt to Complex Processes：
Supports optional third joint components (30Nm/150Nm available) to achieve multi-dimensional tightening in horizontal and vertical directions.Ensures the perpendicularity between the tool and the tightening surface, guaranteeing consistent tightening quality.Corresponding clamps or mounting blocks can be selected according to the tool appearance, compatible with various tightening tools.
This product supports bulk orders and OEM/ODM customized services with factory direct prices.We can provide customized configurations such as communication protocols, interface types, screen size and software functions according to customer production line requirements.Adopts high-quality industrial-grade components and precision manufacturing processes, with stable quality and guaranteed delivery.We also provide complete on-site installation, commissioning, operation training and long-term technical support.
