Danikor Push-pull Torque Arm Series-150Nm Max Torque Positioning Optional Industrial Tightening Auxiliary Equipment
Push-pull Torque Arm is suitable for workbenches or workstations with sufficient space, provides non-positioning and RS485 positioning types, with maximum vertical torque resistance 150Nm and horizontal torque resistance 100Nm. It can be equipped with digital angle sensor and displacement sensor to accurately locate the tool tightening position, featuring simple and lightweight structure for convenient operation. Joint arm (for compact space) and wall-mounted arm (for limited space with air source) are also available, widely compatible with various tightening tools to improve assembly efficiency and quality
- Product Details
- Technical Specification
- After-sale service
Full Torque Range Coverage, Meet Diverse Needs：

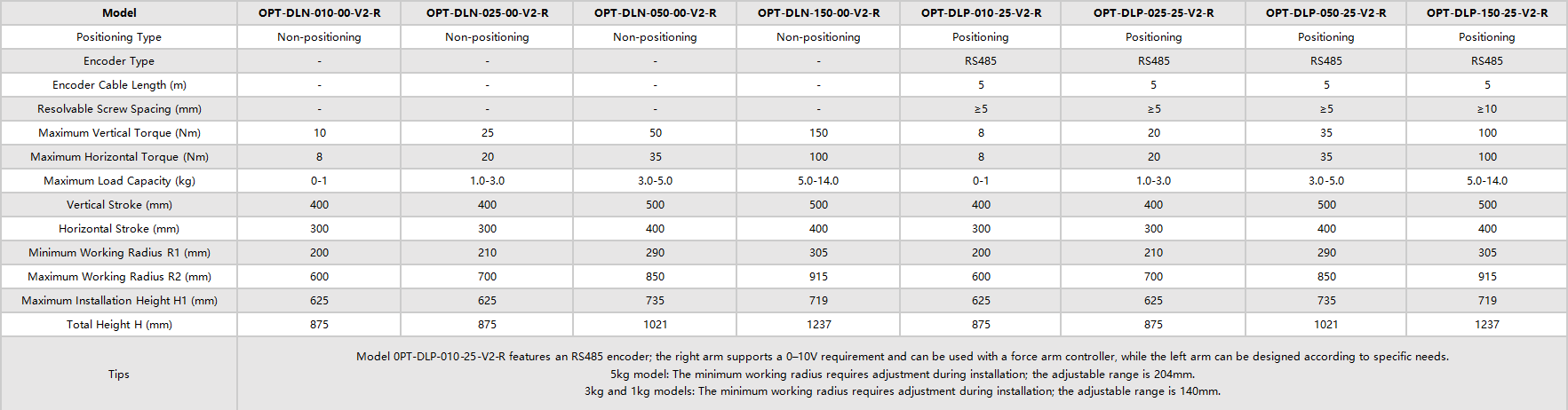

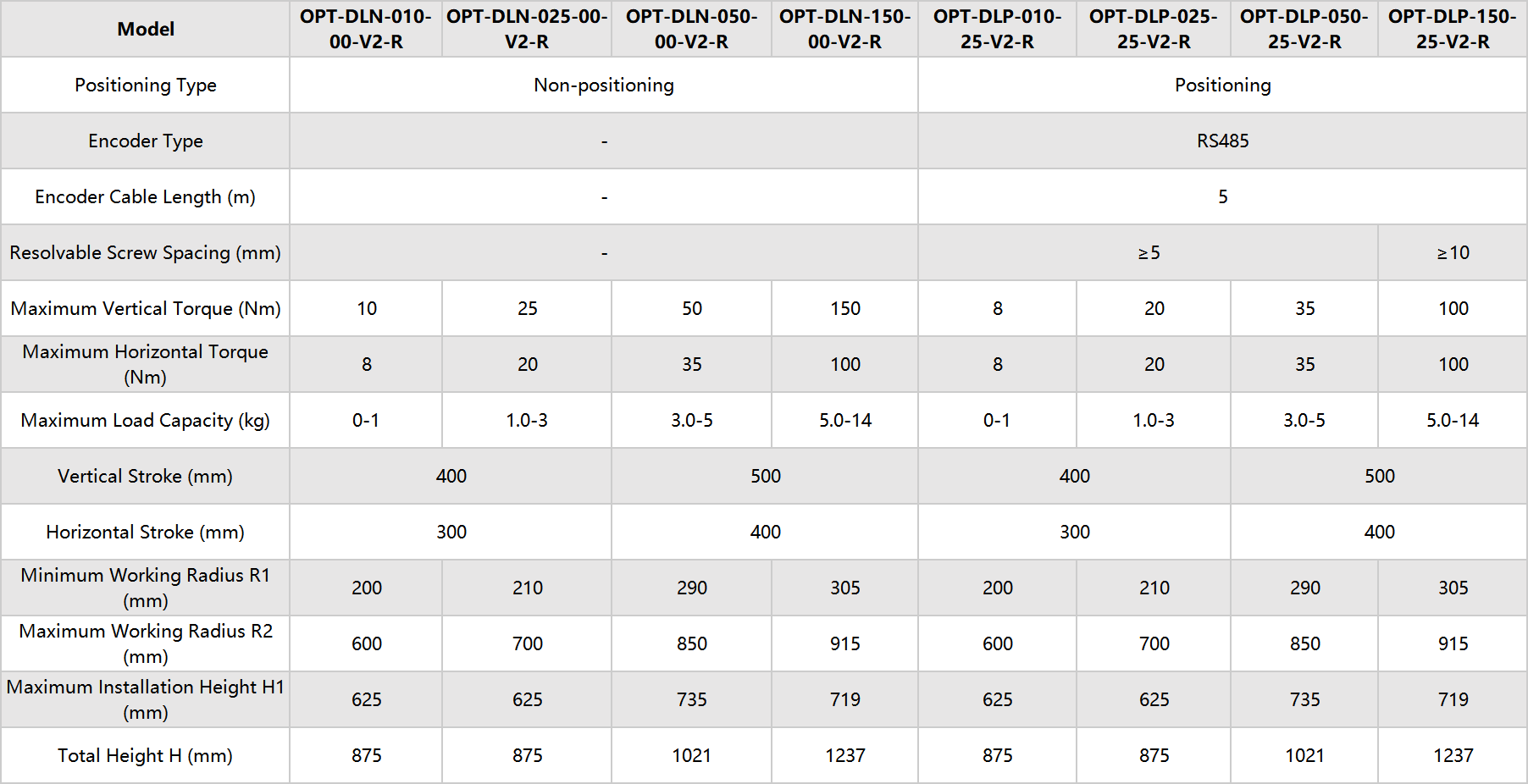

Provides 8 standard models with vertical torque resistance from 10Nm to 150Nm, horizontal torque resistance from 8Nm to 100Nm, and load capacity from 1kg to 14kg, covering most industrial tightening application requirements.Two types available: non-positioning type for general assembly and positioning type with RS485 encoder for precise process control.
Precise Positioning Function, Guarantee Tightening Quality：
Positioning models are equipped with RS485 encoder with minimum screw spacing resolution ≥5mm, realizing precise position monitoring of the tightening tool.Can be configured with 1 digital angle sensor and 1 displacement sensor to accurately locate the tool tightening position, effectively preventing wrong tightening and missing tightening.Simple and Lightweight Structure, Convenient and Efficient Operation：
Overall structure is simple and lightweight, flexible to operate with labor-saving design, greatly reducing the labor intensity of operators and improving assembly efficiency.Smooth movement with no jamming, ensuring stable and reliable operation during long-term continuous production.Large Stroke and Wide Coverage, Adapt to Various Workstations：
Vertical stroke 400-500mm, horizontal stroke 200-400mm, maximum working radius 600-915mm, total height 875-1237mm, adapting to workpieces of different sizes and various workstation layouts.Base adopts stable design, ensuring no shaking during high-torque tightening operation.Multiple Types Optional, Full Scene Coverage：
In addition to push-pull torque arm, we also provide two other types of torque arms to meet different production environment requirements:Joint Torque Arm: Suitable for workstations with compact desktop space
Wall-mounted Torque Arm: Suitable for workstations with limited desktop space and air source, can be fixed with on-site profile brackets
This product supports bulk orders and OEM/ODM customized services with factory direct prices.We can provide customized configurations such as communication protocols, interface types, screen size and software functions according to customer production line requirements.Adopts high-quality industrial-grade components and precision manufacturing processes, with stable quality and guaranteed delivery.We also provide complete on-site installation, commissioning, operation training and long-term technical support.
