Danikor TCD Series Handheld Current-type Tightening Tool-0.02~20Nm Micro-torque ISO5393 Compliant Precision Equipment
Danikor TCD Series Handheld Current-type Tightening Tool covers 0.02~20Nm torque range (including micro-torque models), achieves ±7.5% 6σ accuracy across the full range and complies with ISO5393 standard. It supports 15 tightening steps, 50 Psets, real-time MES docking, powerful error prevention and self-learning programming. Features multiple start modes (handheld/machine-mounted/remote/I/O) and rich communication protocols, compatible with CS series controllers, ideal for new energy vehicles, automotive electronics, 3C electronics, communications, home appliances and medical industrie
- Product Details

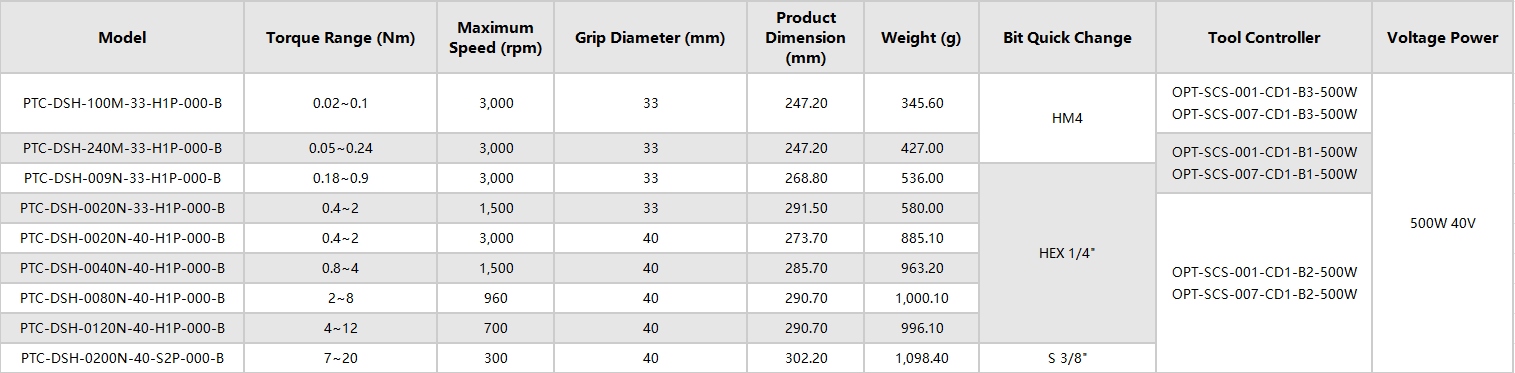

- Technical Specification
- After-sale service
- Ultra-high Precision, Stable Quality Compliant with International Standards：
Achieves ±7.5% 6σ accuracy across the entire 0.02~20Nm torque range, controlled by self-developed high-precision algorithm.Passes hard connection and soft connection precision tests, fully complies with ISO5393 international standard, ensuring reliable tightening quality for precision components.
High Efficiency, Flexible Process Adaptation：
Supports up to 15 tightening steps, flexibly responds to different application requirements and complex process demands.Equipped with multiple advanced tightening strategies to guarantee tightening quality, provides 50 Psets storage, greatly reducing program setting time for different processes.Supports automatic switching between multiple tightening tasks, adapting to different program requirements.Intelligent Traceability, Digital Production Management：
Global monitoring of the entire tightening process, complete data recording and real-time monitoring of all process parameters.Supports real-time data upload and seamless docking with MES system, realizing transparent production management.Large-capacity data storage, can store more tightening results and filter specified programs or time periods; supports multi-curve superposition analysis for in-depth quality analysis.Powerful Error Prevention, Zero Assembly Defects：
Real-time abnormal monitoring during the entire tightening process, accurately identifies common defects including floating nails, slipping teeth, missing tightening, wrong tightening and gasket leakage.Equipped with assembly process authority management, password protection is required for strategy and program setting to prevent misoperation.Task planning overlay protection, manual password input is required for intervention when Job batch task is inconsistent, ensuring production safety and quality traceability.Easy to Use, Flexible Deployment & Expansion：
Supports AI self-learning strategy programming (only supported by upper computer software), automatically learns and recommends parameter ranges, quickly builds tightening strategies.Multiple start modes: 3 types available - handheld, machine-mounted, remote or I/O start, adapting to different production line layouts.Excellent human-computer interaction: provides 3.5-inch small screen and 7-inch large screen controller options, visual display intuitively shows operation status for easy control.Rich communication interfaces: one network port expandable to three ports, supports two TCP/IP, one Modbus_TCP/I/O, compatible with controllers, PLC and MES systems, reducing system integration investment.Equipped with threaded quick expansion port, can quickly connect external modules to expand functions.
This product supports bulk orders and OEM/ODM customized services with factory direct prices.We can provide customized configurations such as torque range, bit type, cable length, controller screen size and communication protocols according to customer process requirements.Adopts high-quality industrial-grade components and precision manufacturing processes, with stable quality and guaranteed delivery.We also provide complete on-site installation, commissioning, operation training and long-term technical support.
