Danikor TCA Series Current-type Tightening Tool- 0.1~200Nm Cost-effective ISO5393 Compliant Industrial Equipment
Danikor TCA Series Current-type Tightening Tool is designed for cost-effective applications, covers 0.1~200Nm torque range with ±7.5% 6σ accuracy, complies with ISO5393 standard. It supports 15 tightening steps, 50 Psets, 200,000 data storage, 14 curves superposition and CP/CPK analysis. Features Chinese-English switching, multi-communication protocols and 3.5/7-inch controller options, compatible with CS series controllers, ideal for auto parts, 3C electronics and home appliance industries
- Product Details

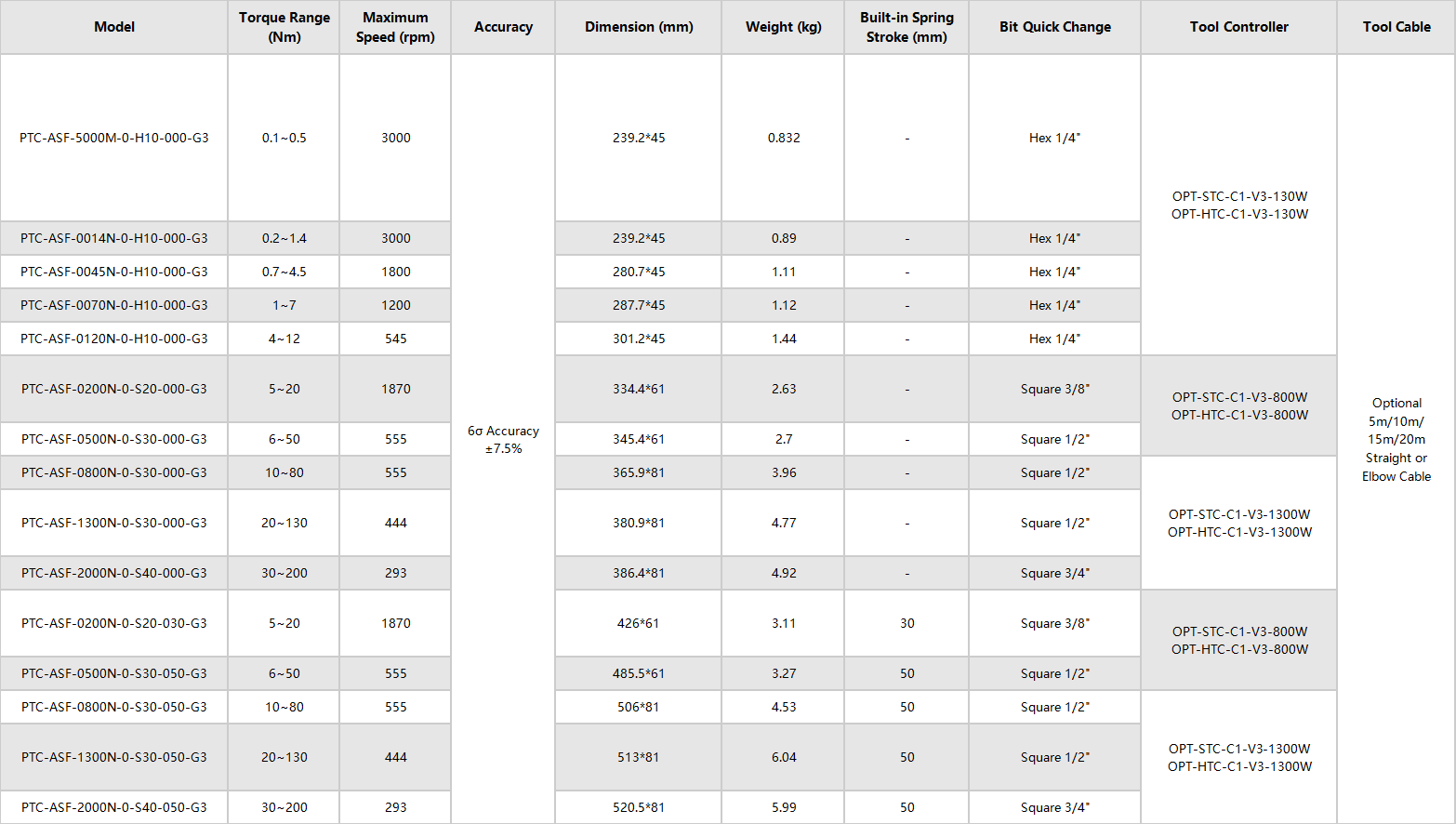

- Technical Specification
- After-sale service
High Precision, ISO5393 Compliant Quality：
Achieves ±7.5% 6σ accuracy across the entire 0.1~200Nm torque range, controlled by self-developed high-precision algorithm.Passes hard connection and soft connection precision tests, fully complies with ISO5393 international standard, ensuring stable tightening quality for economic production scenarios.
High Efficiency, Flexible Process Adaptation：
Supports up to 15 tightening steps, flexibly responds to different application requirements and complex process demands.Equipped with multiple tightening strategies including torque control, speed control, angle control and angle/torque control; supports self-learning programming (only supported by upper computer software) to automatically generate parameter strategies.Provides 50 Psets storage, greatly reducing program setting time for different tightening processes and improving production efficiency.Intelligent Traceability, Digital Quality Management：
Global monitoring of the entire tightening process, real-time collection of torque, angle, speed and other data, and statistics of OK/NG times and pass rate.Supports real-time data upload and seamless docking with MES system, realizing transparent production management.Large-capacity local storage of 200,000 tightening results, supports filtering of specified programs or time periods; supports superposition analysis of up to 14 tightening curves and CP/CPK analysis, facilitating in-depth quality analysis and process optimization.Supports calibration information statistics, can import sensor calibration data and automatically calculate K value.Powerful Error Prevention, Secure Production Management：
Real-time abnormal monitoring during the entire tightening process, accurately identifies common defects including floating nails, slipping teeth, missing tightening, wrong tightening and gasket leakage.Adopts hierarchical operation authority management, password protection is required for debugging interface to set strategies and programs; supports automatic logout after idle time to prevent unauthorized operation.Easy to Use, Flexible Deployment & Expansion：
Excellent human-computer interaction: provides 3.5-inch small screen and 7-inch large screen controller options. Large screen supports policy parameter setting and real-time tightening curve viewing, with authority configuration; small screen supports real-time tightening result viewing and password setting modification.Rich communication interfaces: one network port expandable to three ports, supports two TCP/IP and one Modbus_TCP/I/O, can connect controller, PLC and MES simultaneously, reducing system integration investment.Supports one-click Chinese-English system switching, adapting to multinational production environments.
This product supports bulk orders and OEM/ODM customized services with factory direct prices.We can provide customized configurations such as communication protocols, interface types, screen size and software functions according to customer production line requirements.Adopts high-quality industrial-grade components and precision manufacturing processes, with stable quality and guaranteed delivery.We also provide complete on-site installation, commissioning, operation training and long-term technical support.
