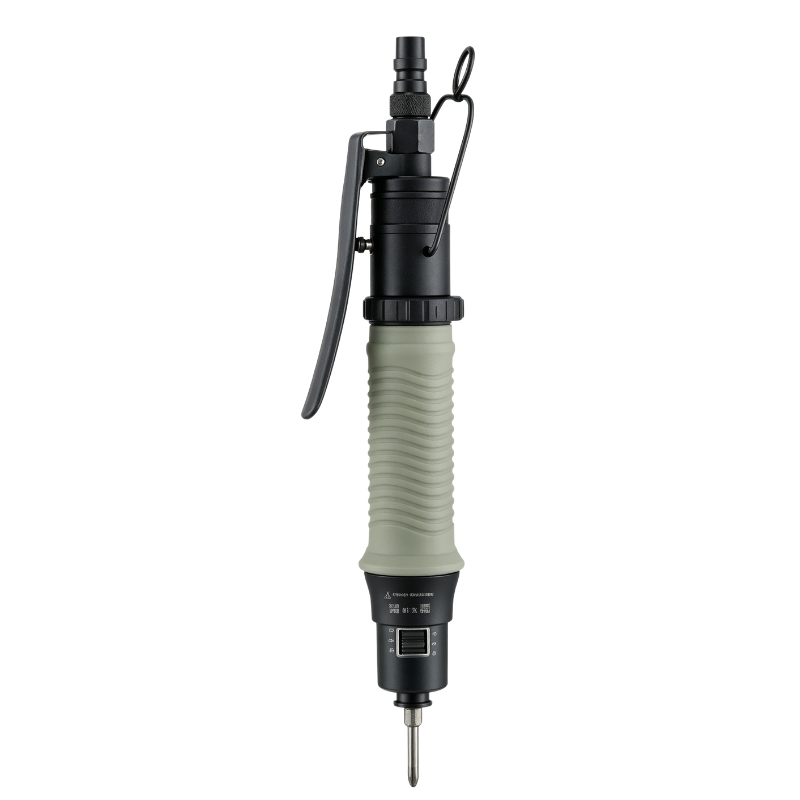

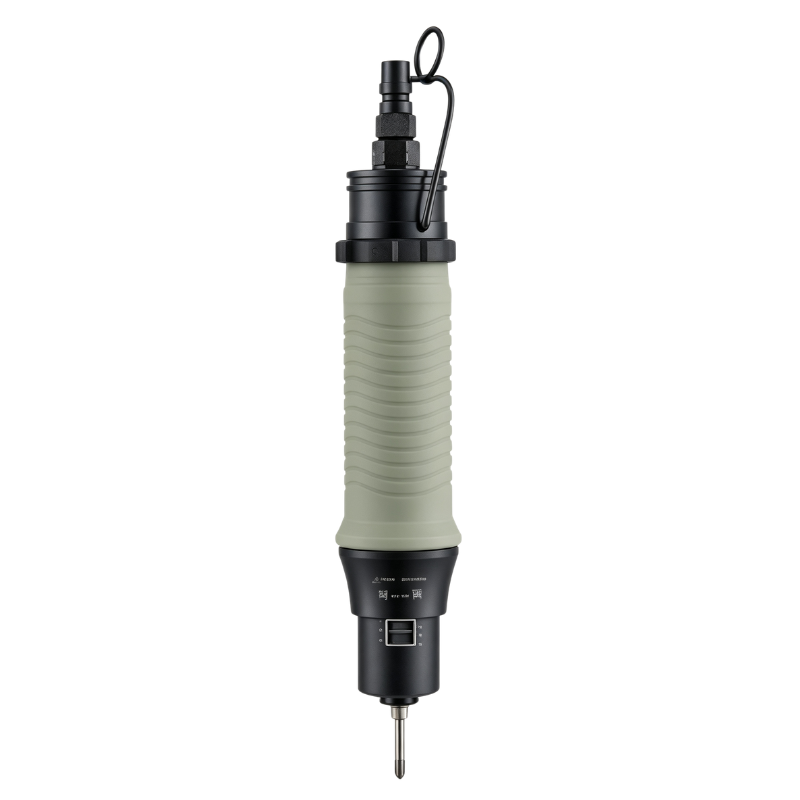

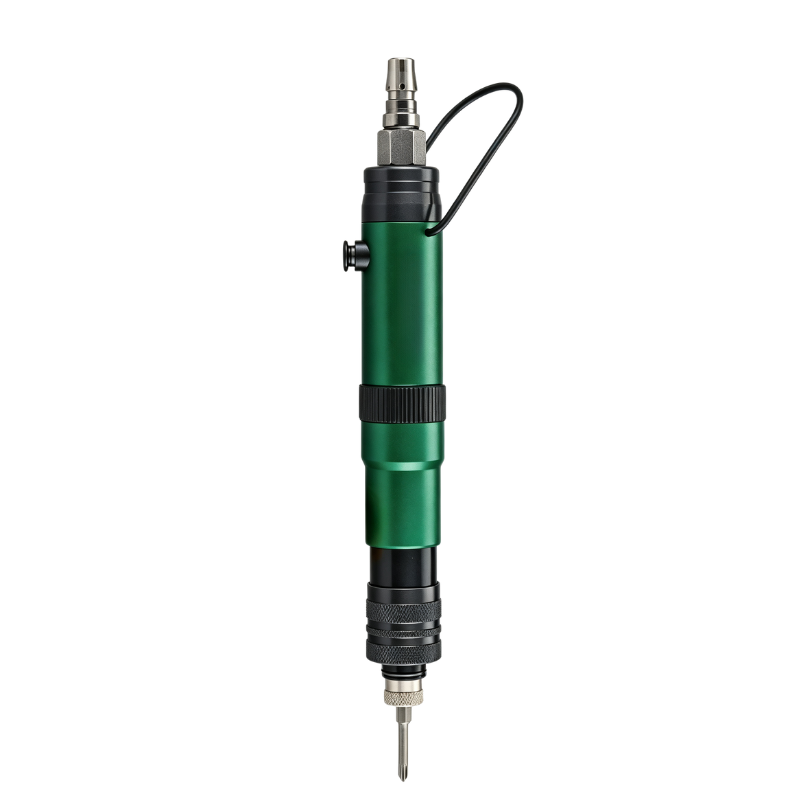

GYQ-LB Series Semi-Automatic Lever-Start Pneumatic Torque Screwdrivers | Industrial High-Precision Clutch-Type Screw Drivers

The GYQ-LB series are semi-automatic lever-start pneumatic torque screwdrivers. The motor activates when the lever is pressed and stops immediately when released, delivering strong operation controllability — ideal for assembly scenarios requiring precise start/stop control.
Equipped with a clutch-type torque mechanism with ±3% torque control accuracy, the full series covers a wide torque range from 1 to 280 kgf·cm, compatible with both machine screws and self-tapping screws.Built with an industrial-grade pneumatic structure, it delivers stable operation, low noise and long service life with an ergonomic grip. It is widely used for precision fastening in electronics, home appliances, hardware & plastics, toys and other industries.

  1. Semi-Automatic Lever Design for Precise Start/Stop Control

    • It adopts semi-automatic operation logic: start by pressing the lever and stop immediately upon release, with fast start-stop response. Operators can precisely control operation timing, making it ideal for assembly scenarios requiring alignment and fine adjustment. The comfortable operating feel reduces fatigue during long work hours, balancing work efficiency and operation controllability.


  2.  Wide Range Multi-Spec Coverage for Diverse Fastening Needs

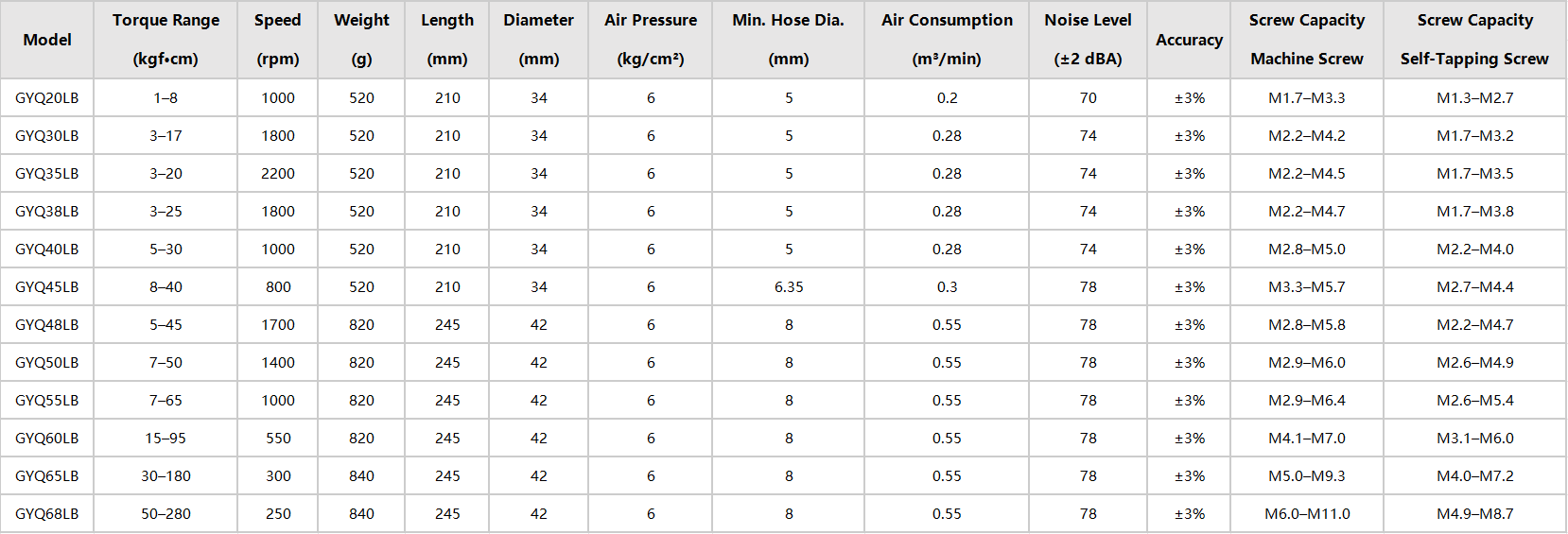

    • The full series offers 12 specifications with torque coverage from 1 to 280 kgf・cm, adapting to everything from micro precision screws to large-size fasteners. Each model matches different speed and screw fastening capabilities, allowing users to select the precise model based on screw specification and work cycle to fit different production line needs.


  3. Precision Clutch Torque for Consistent Fastening Quality

    • It adopts a precision clutch-type torque structure that automatically disengages and slips when preset torque is reached, with stable torque control accuracy of ±3%. It effectively prevents thread stripping, workpiece cracking and screw breakage caused by over-tightening, ensures consistent fastening quality across batch products, and reduces defect rates.


  4. Industrial-Grade Pneumatic Structure for Low-Noise Durability & Low O&M Cost

    • Equipped with high-quality pneumatic motors and precision transmission components, it delivers stable and reliable operation with long service life. Excellent noise control (max 78 dBA) improves the workstation environment. Driven by standard air pressure with economical air consumption, it is suitable for long continuous operation and greatly reduces production line operation and maintenance costs.


  5. Ergonomic Grip Design for Comfort During Long Operation

    • The body has balanced weight distribution, and the grip area features a non-slip comfortable design, reducing hand fatigue during long handheld operation. The compact structure with body diameter fitting hand grip enables flexible and intuitive operation, effectively reduces occupational strain for operators and improves workstation comfort.

This product supports bulk orders and OEM/oDM customized services with factory direct prices.We canprovide customized configurations such as torque range, drive head type, battery capacity, angle functionand appearance according to customer requirements.Adopts high-quality industrial-grade componentsand precision manufacturing processes, with stable quality and guaranteed delivery.We also provide complete operation training, calibration services and long-term technical support services.
