Danikor TTA Series Sensor-type Tightening Tool-0.1~200Nm ±5% Accuracy ISO5393 Compliant Industrial Equipment
Danikor TTA Series Sensor-type Tightening Tool covers 0.1~200Nm ultra-wide torque range, achieves ±5% 6σ accuracy across the full range and complies with ISO5393 standard. It supports 50 Psets & 50 Jobs with 15 tightening steps, features real-time MES docking, 200,000 data storage, powerful error prevention and self-learning programming. Available in 3.5-inch and 7-inch controller options, compatible with CS series controllers, ideal for new energy vehicles, automotive electronics, auto parts and 3C electronics industries
- Product Details

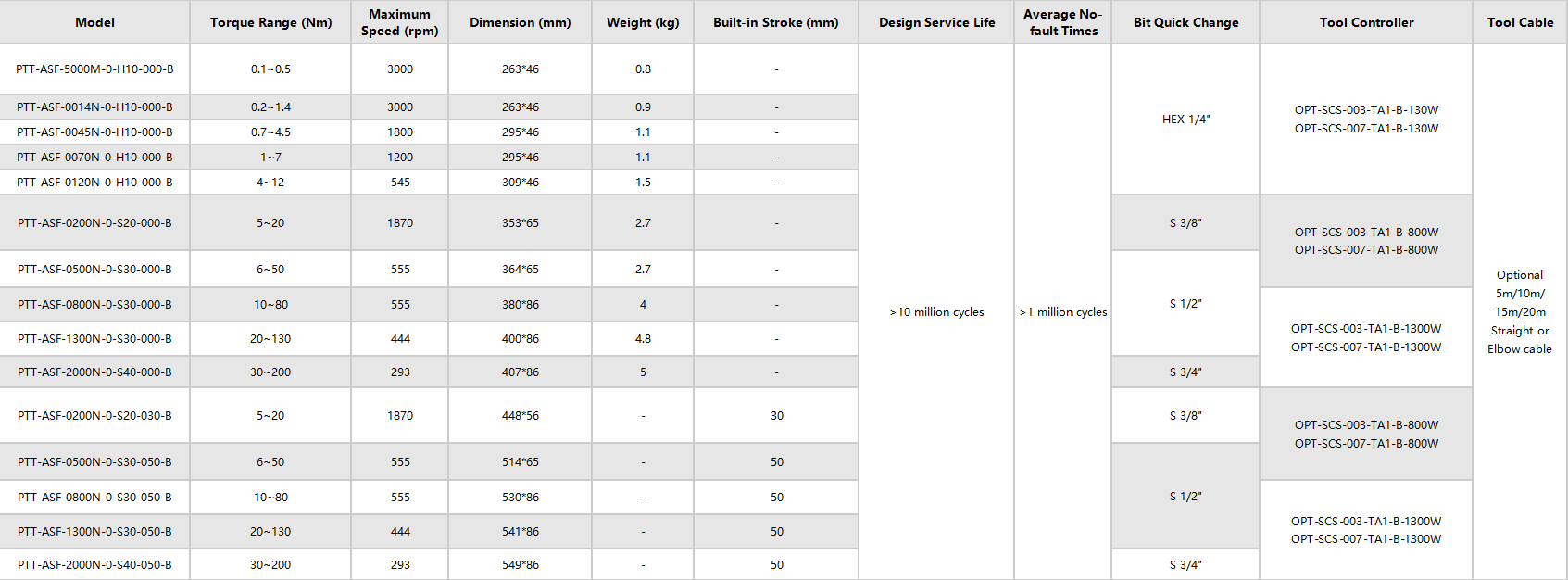

- Technical Specification
- After-sale service
- Ultra-high Precision, Full Range Stable Quality：
Achieves ±5% 6σ accuracy across the entire 0.1~200Nm torque range, controlled by self-developed high-precision algorithm.Passes hard connection and soft connection precision tests, fully complies with ISO5393 international standard, ensuring each screw reaches the optimal fastening state.
High Efficiency, Flexible Process Adaptation：
Supports up to 15 tightening steps, flexibly responds to different application requirements and complex process demands.Equipped with multiple advanced tightening strategies including clamping torque control, effectively guaranteeing tightening quality and reducing defective rate.Provides 50 Psets & 50 Jobs storage, greatly reducing program setting time for different tightening processes.Intelligent Traceability, Digital Production Management：
Global monitoring of the entire tightening process, complete data recording and real-time monitoring of all process parameters.Supports real-time data upload and seamless docking with MES system, realizing transparent production management.Local storage of 200,000 tightening results, supports multi-curve superposition analysis, facilitating in-depth quality analysis and process optimization.Powerful Error Prevention, Zero Assembly Defects：
Real-time abnormal monitoring during the entire tightening process, accurately identifies common defects including floating nails, slipping teeth, missing tightening, wrong tightening and gasket leakage.Equipped with assembly process authority management, password protection is required for strategy and program setting to prevent misoperation.Task planning overlay protection, manual password input is required for intervention when Job batch task is interrupted, ensuring production safety.Easy to Use, Flexible Deployment：
Supports AI self-learning strategy programming (only supported by upper computer software), automatically learns and recommends parameter ranges, quickly builds tightening strategies.Multiple start modes: handheld or machine-mounted. Handheld can be equipped with trigger accessories; machine-mounted supports remote IO/bus/protocol modes.Rich communication interfaces: supports Modbus_TCP, TCP/IP custom protocols, extended digital I/O interfaces, with threaded quick expansion port for external modules.Excellent human-computer interaction: provides 3.5-inch small screen and 7-inch large screen controller options, visual display is intuitive and easy to control.
This product supports bulk orders and OEM/ODM customized services with factory direct prices.We can provide customized configurations such as communication protocols, interface types, screen size and software functions according to customer production line requirements.Adopts high-quality industrial-grade components and precision manufacturing processes, with stable quality and guaranteed delivery.We also provide complete on-site installation, commissioning, operation training and long-term technical support.
